Annotate Assets

A Mondoo annotation is a key-value pair you attach to an asset. Annotations let you record the things Mondoo can't discover on its own, such as owner, team, project, ticket number, or physical asset tag, so you can group and find assets later.

Common examples:

Some keys you'll use the same value for across many assets (build: terraform). Others get a unique value per asset (asset-tag: luna000262).

Annotations show up on the asset page in the Mondoo App, get included when you export data, and are indexed by search so you can find assets by their annotations.

Add or edit annotations in the Mondoo App

1. In the Mondoo App, navigate to the asset you want to annotate.

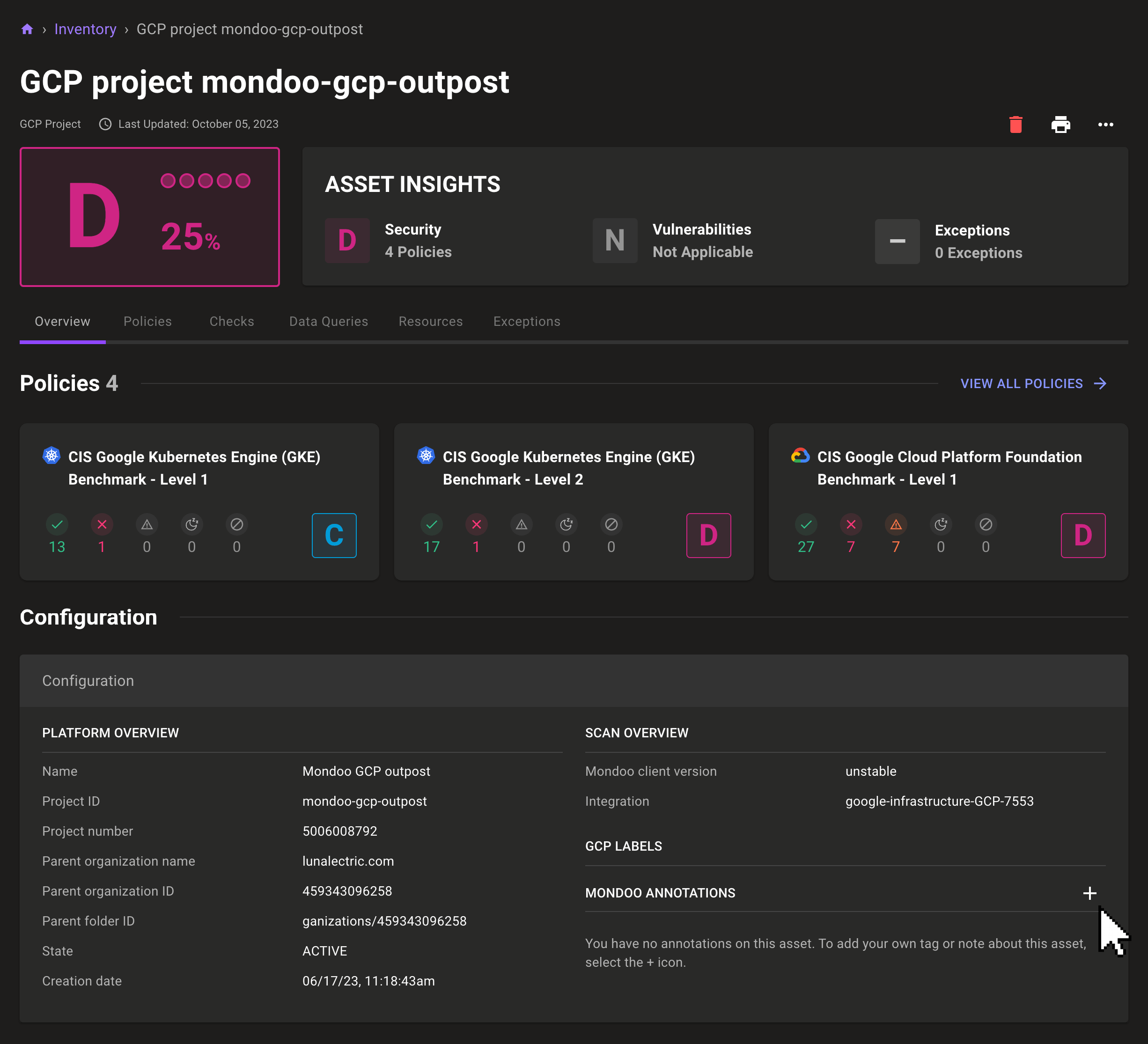

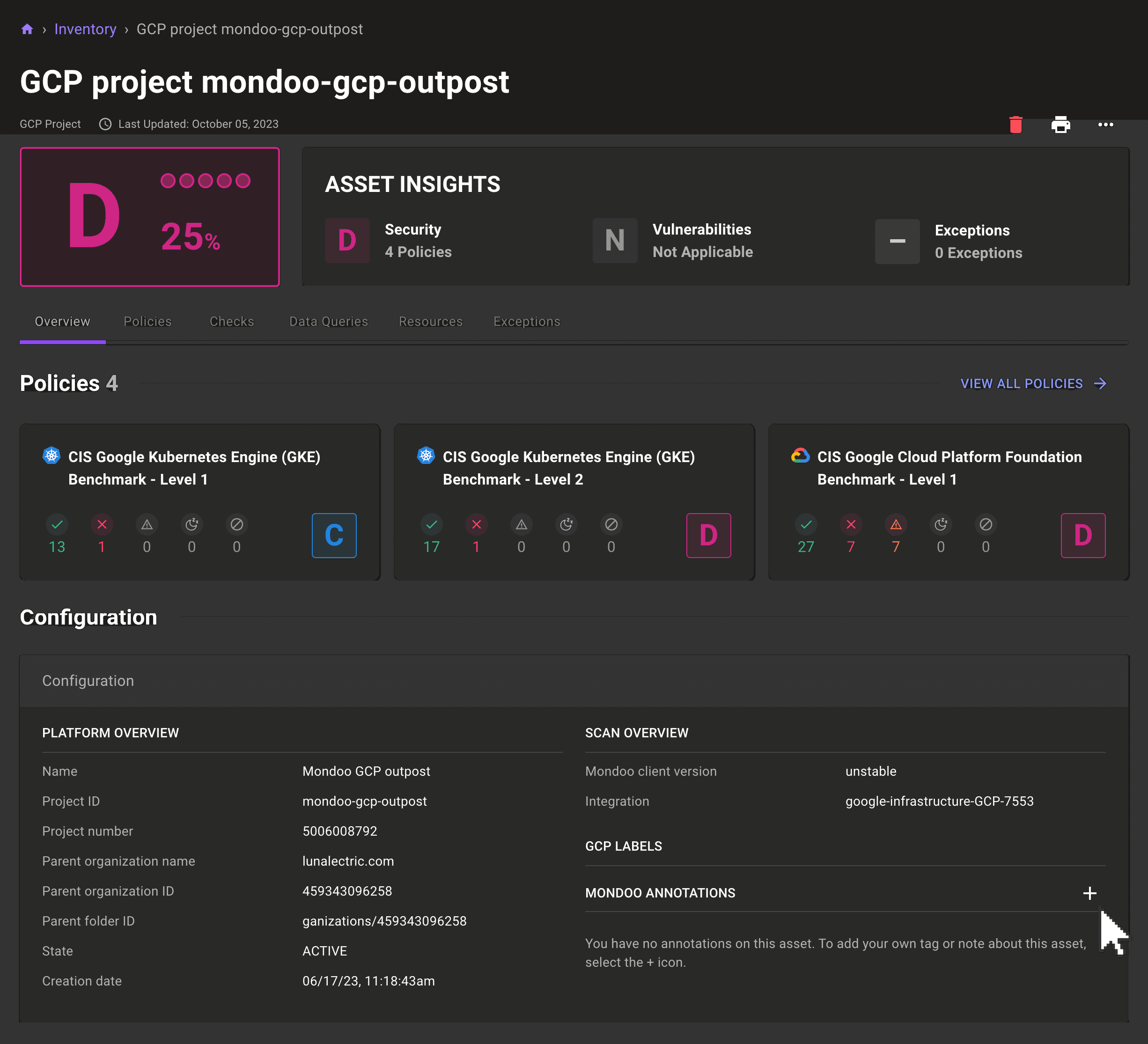

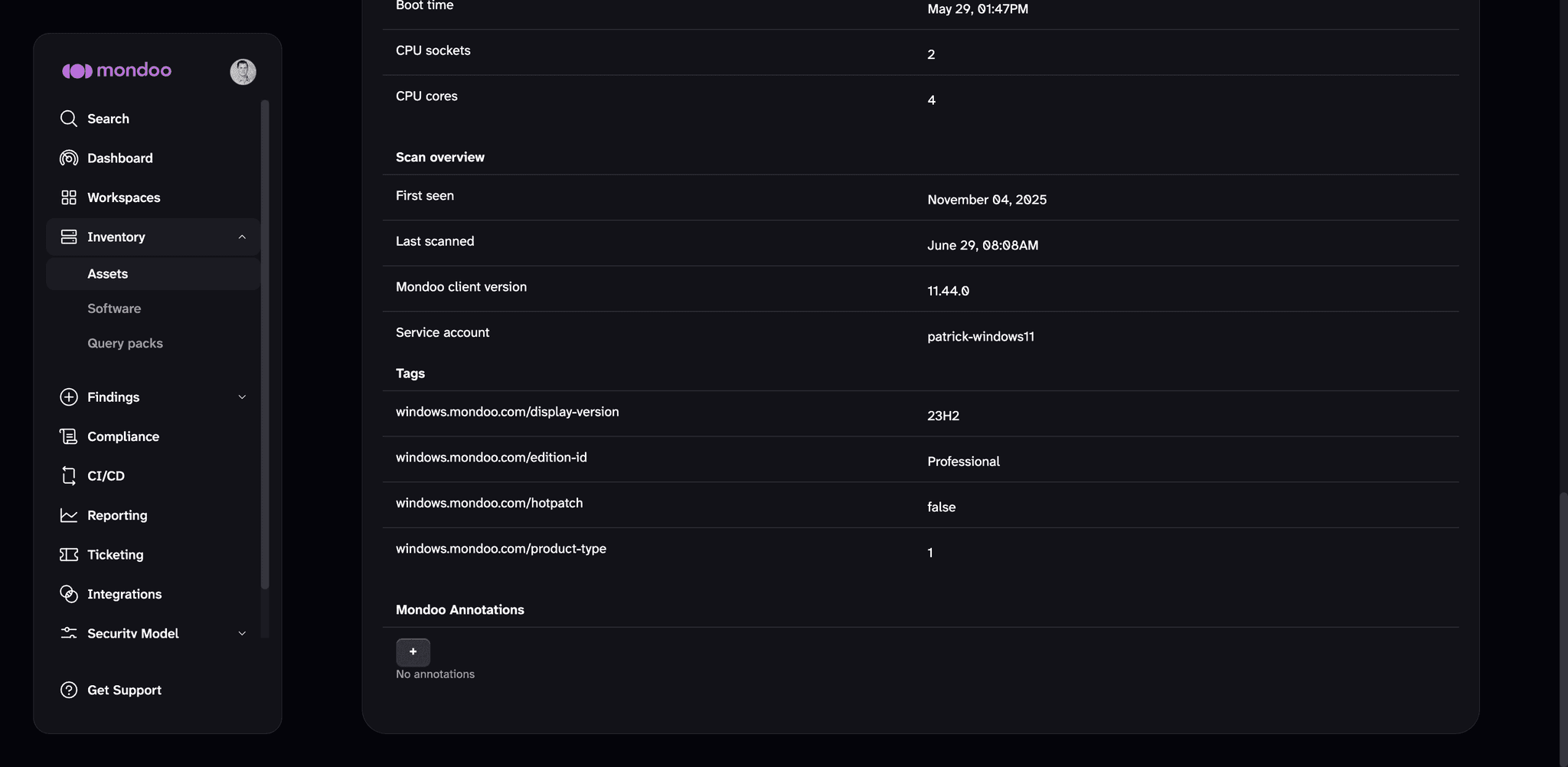

2. On the asset page, scroll to the MONDOO ANNOTATIONS card in the bottom-right.

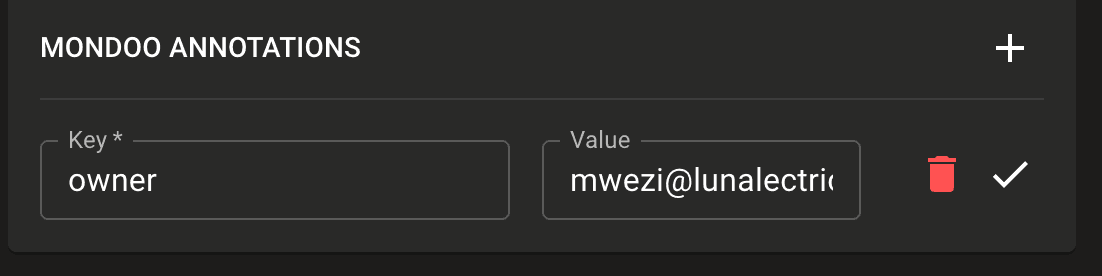

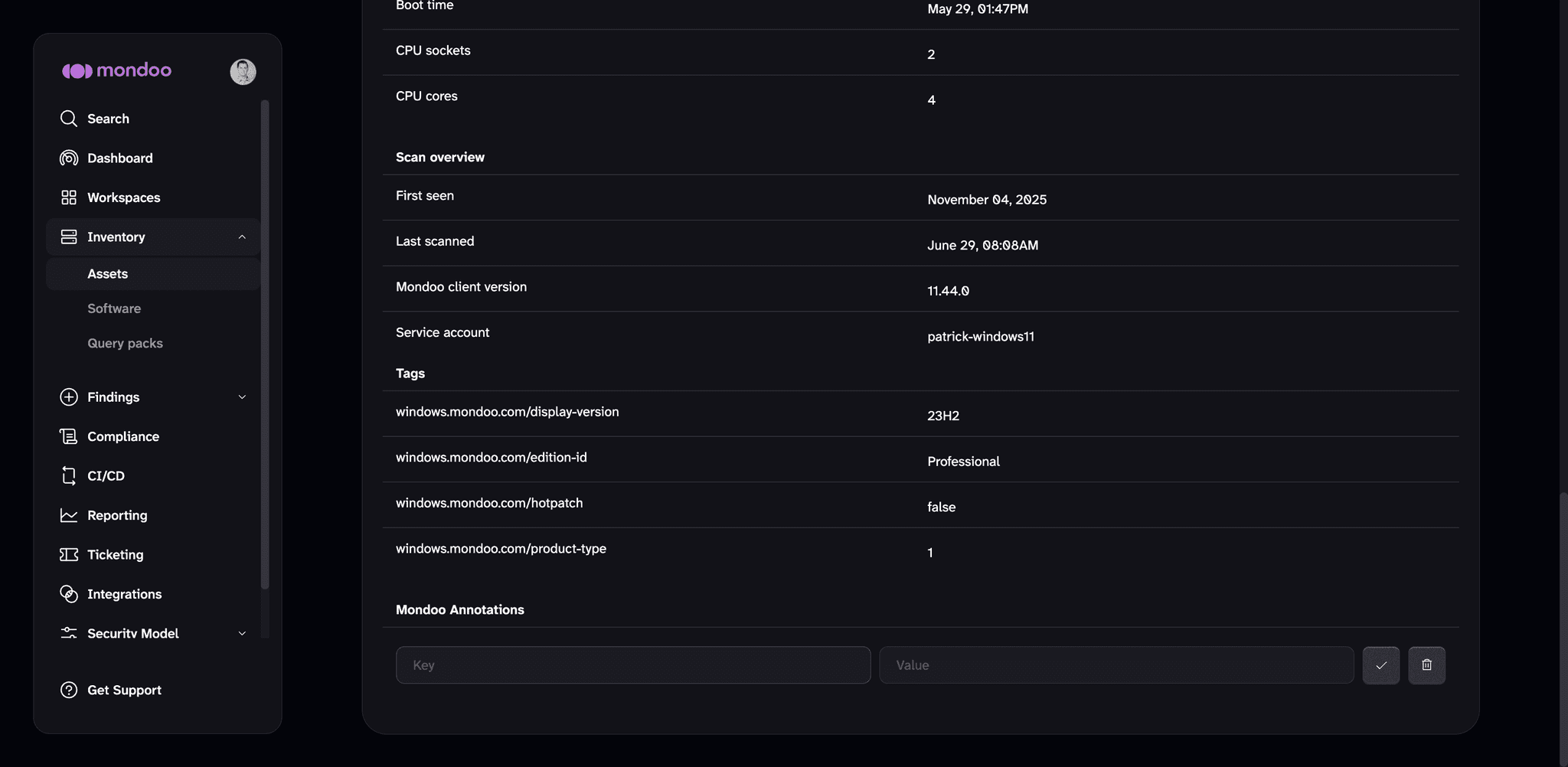

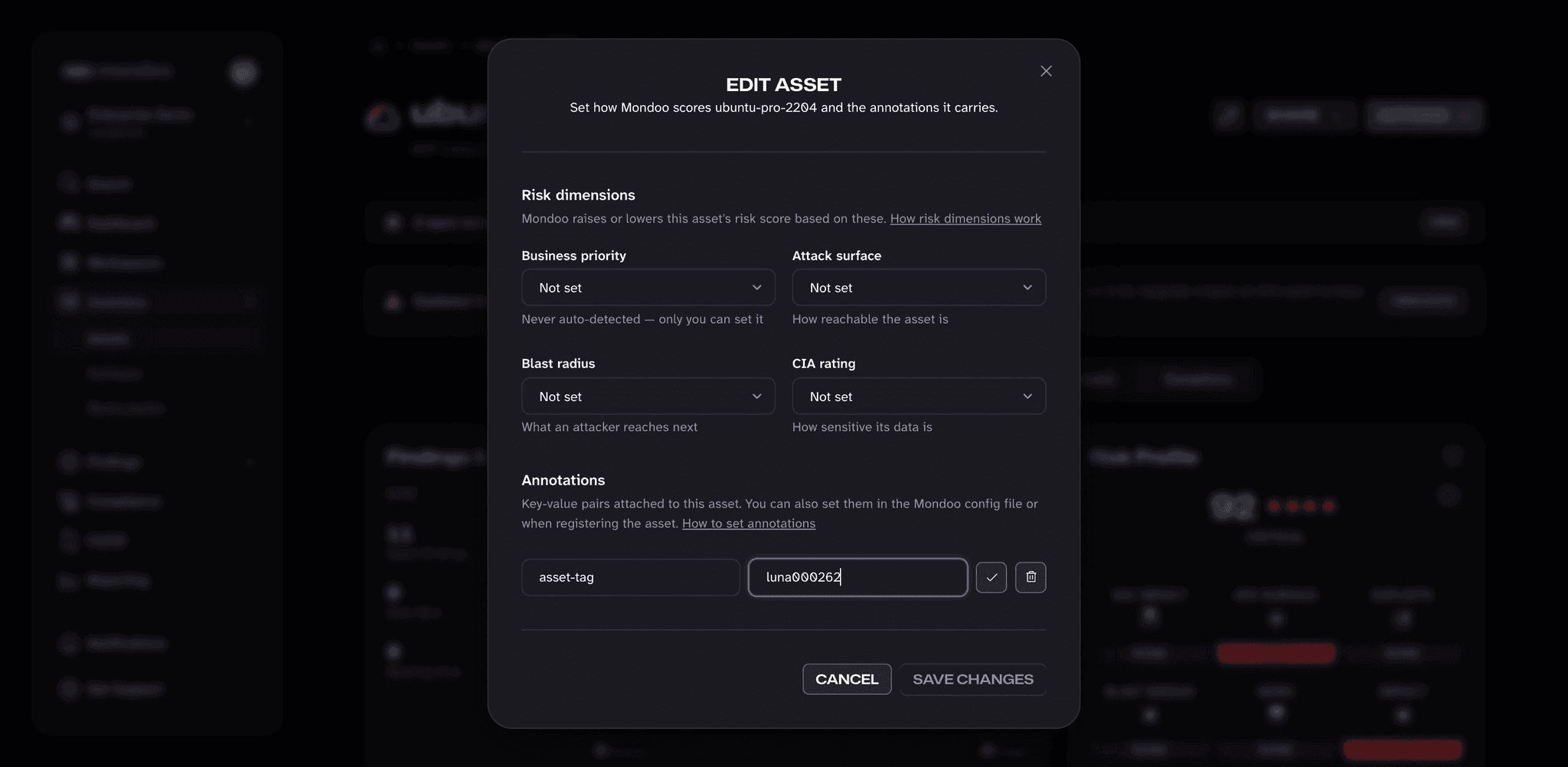

3. To add an annotation, select the + icon, enter a key and value, then select the check mark.

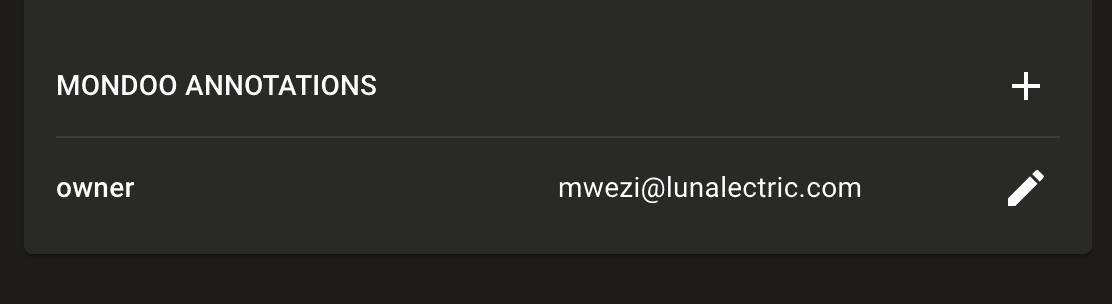

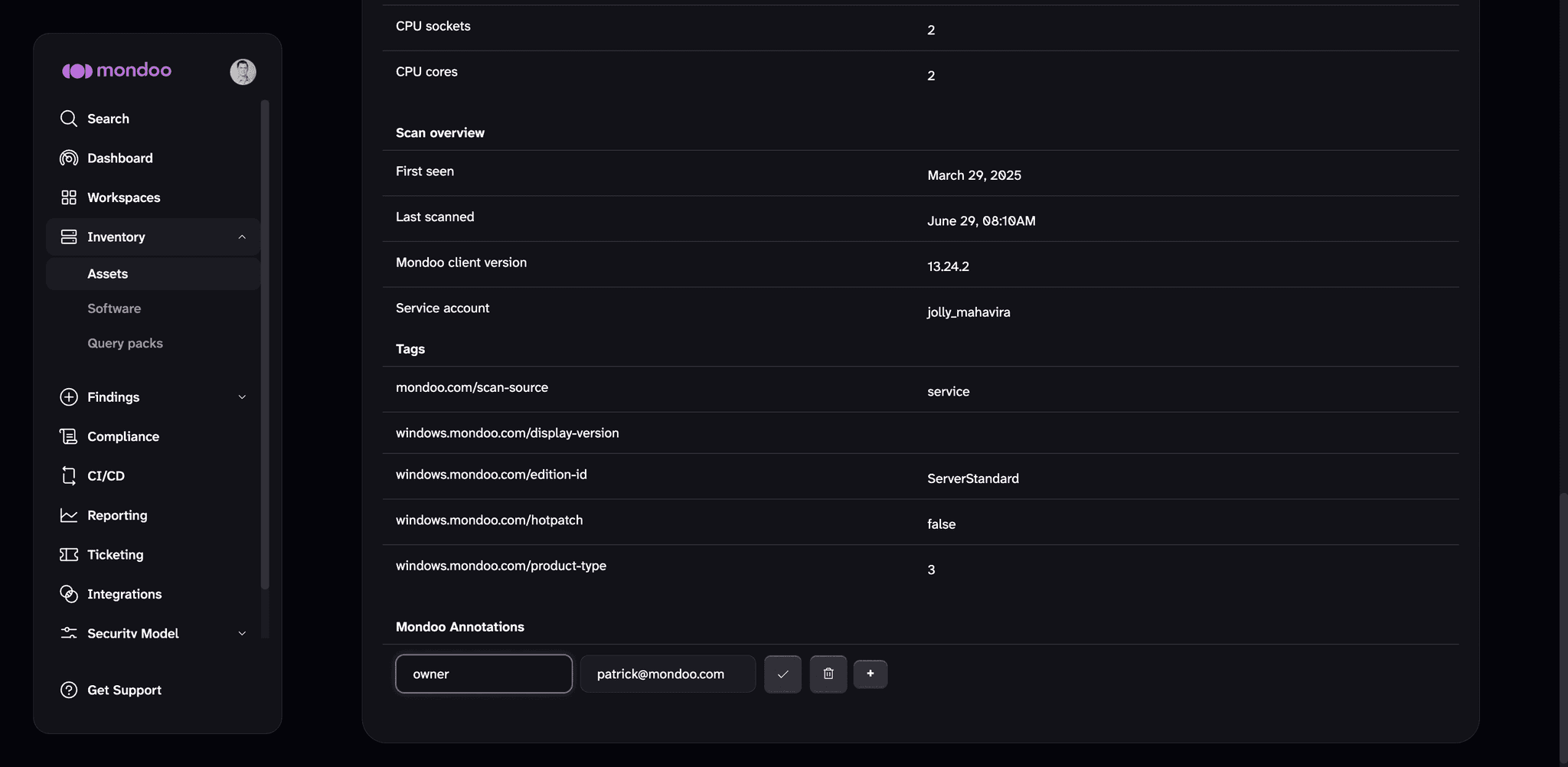

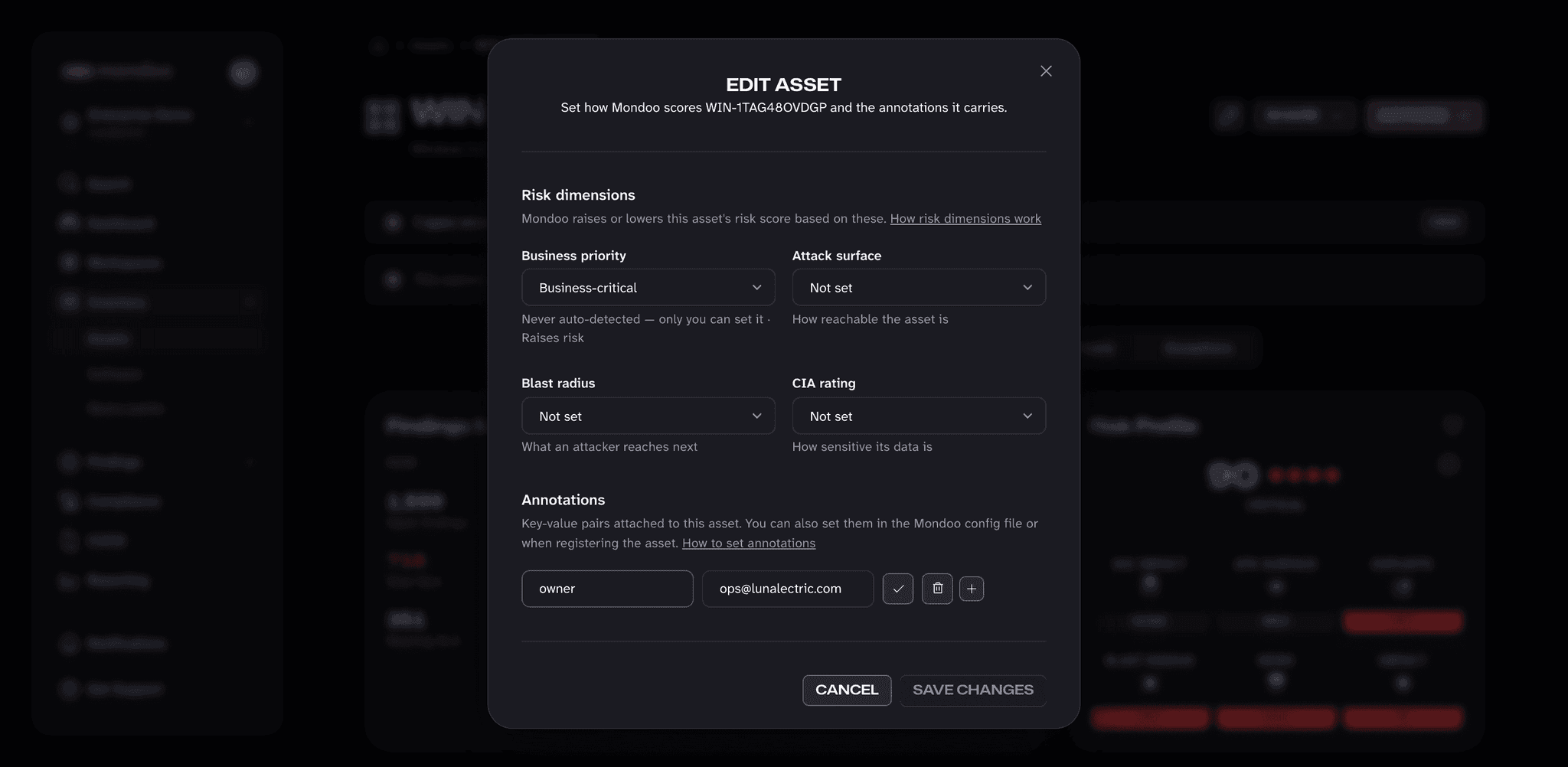

4. To change or remove an annotation, select the pencil icon next to it. Edit the key or value and confirm with the check mark, or select the trash can to delete the annotation.



Add annotations when scanning with cnspec

If you're scanning assets with cnspec from a CI/CD pipeline, a workstation, or a server, you can set annotations at scan time instead of clicking through the UI.

From the command line

Pass --annotation key=value to cnspec scan:

cnspec scan local --annotation asset-tag=luna000264

You can pass the flag multiple times to add multiple annotations.

From the local Mondoo configuration

Add an annotations block to the local mondoo.yml config on the asset. Every scan from that asset picks up the annotations.

On Linux or macOS, the file lives at:

• /etc/opt/mondoo/mondoo.yml (applies to every user on the host)
• ~/.config/mondoo/mondoo.yml (applies to one user)

On Windows:

• C:\ProgramData\mondoo\mondoo.yml (applies to every user)
• C:\Users\{username}\.config\mondoo\mondoo.yml (applies to one user)

annotations:
  team: research
  owner: cosmo@lunalectric.com

From a cnspec inventory file or template

A cnspec inventory file lists the assets to scan. You can attach annotations to each asset in that file:

spec:
  assets:
    - name: web-prod-1
      connections:
        - type: local
      annotations:
        project: mars-rover

For CI/CD pipelines, an inventory template lets you pull values from environment variables so one file works for many runs:

spec:
  assets:
    - name: { { getenv "ASSET_NAME" } }
      connections:
        - type: local
          discover:
            targets:
              - auto
      annotations:
        project: { { getenv "PROJECT" } }

Run the scan with the variables set:

ASSET_NAME="web-prod-1" PROJECT="mars-rover" cnspec scan --inventory-template template.yaml

Related

• Search your inventory: find assets by the annotations you've set.
• cnspec scan: full reference for the scan command.
