Write Effective MQL

We built MQL for searching, filtering, and testing infrastructure configuration data. Easy, lightweight, and fast, MQL’s data extraction resembles GraphQL, while its intuitive scripting approach is similar to JavaScript.

This page describes the conventions for writing queries and checks in MQL. It contains these sections:

These are other helpful resources in the Mondoo docs:

PagePurpose
Policy Authoring GuideDescribes how to write Mondoo security policies
MQL ResourcesLists all of the information that MQL can retrieve from infrastructure assets and describes how to use them
Get Started with cnqueryDescribes how to use the cnquery shell for ad hoc MQL queries
Query Your InfrastructureDescribes how to write queries to execute from the command line or to use in automation
cnquery CLI commandsDetails all commands in the cnquery command line interface
Create Checks in cnspec ShellDescribes how to use the cnspec shell for ad hoc MQL assertions
cnspec CLI commandsDetails all commands in the cnspec command line interface

Basic structure

All MQL code is in UTF-8 to support any characters. MQL is a type-safe and compiled language that can also be executed on the fly.

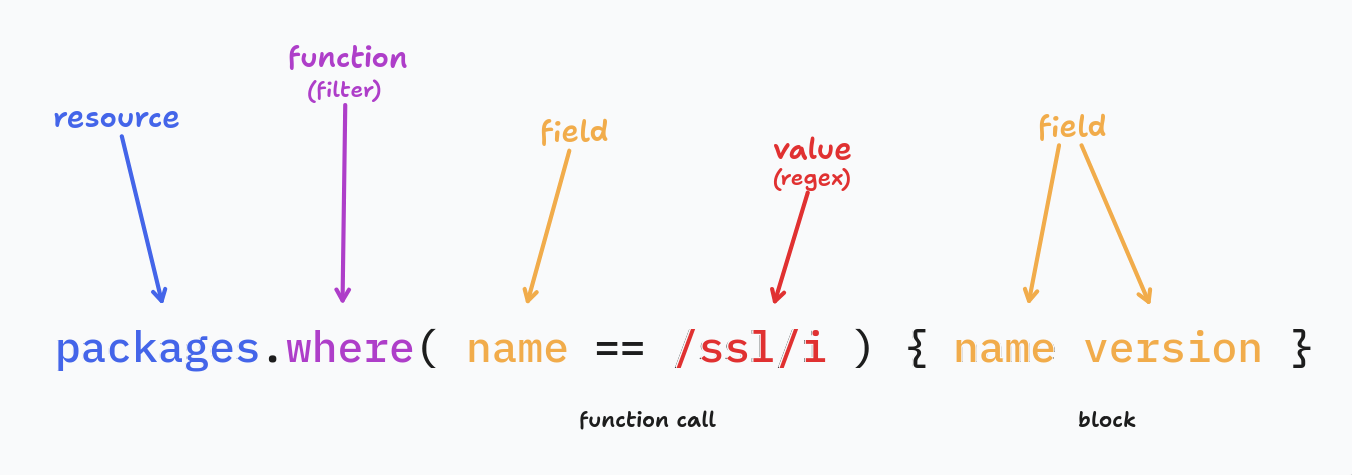

These are the basic tools of MQL: Resources and fields Blocks Lists Basic functions

Resources and fields

A resource is a source of information about an asset in your infrastructure. These are examples of resources:

  • A user on the asset
  • The operating system running on the asset
  • An AWS S3 bucket
  • A Google Cloud compute instance
  • A Terraform state
  • A Microsoft Entra ID domain

Each resource has one or more fields, pieces of information you can request from the resource. These are examples of fields:

  • A user can have a unique ID, a group, an SSH key, and more.
  • An operating system can have a name, a path, and more.
  • An AWS S3 bucket can have a version, can be public or not public, have encryption information, and more.
  • A Google Cloud compute instance can have deletion protection on or off, a hostname, and more.
  • A Terraform state can have output values, modules, and more.
  • A Microsoft Entra ID domain can have a verified or unverified status, an authentication type, and more.

This example requests the platform of an asset. asset is the resource and platform is the field:

asset.platform

The output would be redhat, windows, k8s-pod, or similar.

Access related resources

sshd.config.file
=> file("/etc/sshd/sshd_config")

sshd.config.file.path
=> "/etc/sshd/sshd_config"

Child resources

Some resources have child resources. For example, the aws.ec2 resource has multiple child resources, including aws.ec2.volume, aws.ec2.snapshot, and more.

Blocks

Blocks are a convenient way to group and extract information. They save you the trouble of repeating multiple requests for fields from one resource.

Instead of making individual requests like this:

sshd.config.file
sshd.config.params
sshd.config.ciphers

You can combine them into a block:

sshd.config {
file
params
ciphers
}

The output is the same.

Nest blocks

You can nest blocks:

sshd.config {
file {
path
permissions
}
}

Request all fields from a resource

A quick way to request all fields from a resource is by using {*}. For example, this requests all fields from the services resource:

services { * }

This expands all immediate fields of the given resource. It does not cascade to list any child resources.

Lists

Some resources provide information in lists. For example, this requests a list of users, a list of packages, and a list of services:

users
packages
services

Using blocks, you can access specific field values from every item in a list. For example, this requests the name, uid, and home field values for each result in a list of users:

users {
name
uid
home
}

Basic functions

These help to take action on resources and fields. Some of the most important functions exist on lists and include where, all, none, and more.

users.where( uid >= 1000 ) {
name
uid
}

To learn more, read Functions.

Control structures

These are the control structures that organize the flow of control in MQL:

If

In MQL a simple if statement looks like this:

if( x > 0 ) {
return y
}

You can also chain statements with else if and else:

if( x > 10 ) {
return 1
} else if( x > 0 ) {
return 0
} else {
return -1
}

Switch

You can more easily chain multiple conditionals together using switch:

switch( x ) {
case _ > 10:
return 1
case _ > 0:
return 0
default:
return -1
}

MQL evaluates the cases from top to bottom until it finds a match. There is no automatic fall-through.

Conditional operators

MQL supports these conditional operators:

  • ==
  • !=
  • >
  • <
  • >=
  • <=
tip

Use inRange to check if an integer, float, or dict is in a numeric range. Follow this format:

VALUE.inRange(MIN,  MAX)

Examples:


3.inRange(3, 5)

password.length.inRange(9, 15)

Although MQL is type-safe and compiled, it’s also forgiving. You can easily express your assertions without having to fight with the type-safety.

Here’s a simple example:

a = 2
b = "2"

a == 2 && b == 2

Here’s a real-world example:

sshd.config.params["Port"] == 22

params is a map of strings, so values like Protocol and Port are strings, even though they look like numbers.

Many conditional operators allow soft comparisons:

"2" == 2

"2" == 2.0

"3" > 2

[1] == 1

This simplifies the usage of regular expressions as well:

"Hello world" == /H.*o/

To learn about conditional operators with lists, see Arrays.

To learn about conditional operators with maps, see Maps.

Functions

Parameters

Many fields take unnamed parameters by default:

sshd.config( "/path/to/my/sshd" )

You can also use named parameters to initialize resources.:

parse.json(
command('lsblk --json').stdout
)

Anonymous functions

You can call many functions with an embedded function. An example is where:

users.where( uid >= 1000 )

The function takes an embedded function as an argument, which is executed against it. The fields (in the above example, uid) are by default bound to the calling resource (in the above example, user).

You can combine these with global resources and variables:

users.where( name == regex.email )

Some functions support both embedded and static values:

[1,2,3].contains( 3 )
[1,2,3].contains( _ > 2 )

Named arguments in functions

You can set a named argument in a function. This is useful in situations where you can only use one expression (such as with all or one). It also makes the code easier to understand, especially when nesting across multiple objects, as in this example:

users.all(user:
groups.contains(group:
user.uid == group.gid
)
)

Data

Learn about these data types in MQL:

Basic data types

MQL's basic data types are:

s1 = "I am a string"
s2 = 'I am also a string'
re = /Reg.* Expression/

n1 = 1.0 + 2

n = null
b = true || false

Regular expressions

For regular expressions, you can access a lot of pre-built expressions in the regex resource. These are a few examples:

"anya@forger.com" == regex.email

"10.0.0.255" == regex.ipv4
"fe80::1042:2c47:b787:f6bb" == regex.ipv6

"4832500902091714" == regex.creditCard

To learn about all the pre-build expressions, read the regex resource reference.

Time

MQL’s built-in time functions make these assertions easy:

time.now
# 2022-10-13 14:42:35 -0700 PDT

time.now - time.day
# 2022-10-12 14:42:35 -0700 PDT
# subtracts a day from the current time

time.now - 2*time.hour
# 2022-10-13 11:42:35 -0700 PDT
# subtracts 2 hours from the current time

parse.date("2022-10-12T14:42:35Z")
# 2022-10-12 14:42:35 +0000 UTC
# uses RFC3339 layout by default
tip

Use inRange to check if a date and time is in a range. Follow this format:

DATE.inRange(MIN, MAX)

Example:

time.inRange(yesterday, tomorrow)

MQL also can parse durations:

parse.duration("3days")

parse.duration("1y")

Although the parser is very lenient, for best results, use:

30s = 30 seconds
1m = 1 minute
3h = 3 hours
90d = 90 days
5y = 5 years

Empty

The empty data type saves you the trouble of checking for different kinds of empty values, such as:

  • []
  • null
  • ''
  • {}

For example, this query finds any type of empty value:

users.list == empty

Semantic versioning

Use the semver type for semantic versioning. Create a semver using the semver keyword, which takes a string as an argument:

semver('3.12.1')

You can compare a semver with another semver or with a string:

semver('1.2.3') < semver('2.3')

semver('1.10') >= '1.2'

Arrays

Many resources contain lists of entries, like this example:

users {
name
uid
}

You can filter these lists using the where clause:

users.where( uid >= 1000 ) {
name
uid
}

Array assertions

To avoid unnecessary loops, MQL provides some keywords that make assertions on lists a lot simpler. For example:

users.all( uid >= 0 )

Failures to these print the affected elements:

> users.all( uid > 0 )
[failed] users.all()
actual: [
0: user id = user/0/root
]

The available assertions for all lists are:

users.all( name != "anya" )   <= make sure no user is called anya
users.one( name == "anya" ) <= one user must exist, but no more than one
users.none( name == "anya" ) <= no user exists with the name anya
users.contains( uid >= 1000 ) <= contains one or more users with uid >= 1000

For lists of strings, you can use the in assertion, which is the inverse of contains:

"anya".in(["abel","amos","anya"])

An ideal use for in is to combine it with properties. For example, if you define a property named allowedCiphers, you can assert that a configured cipher is in that list:

sshd.config.ciphers.in( props.allowedCiphers )

Another useful assertion for lists of strings is containsAll:

["abel","amos","anya"].containsAll(["abel","amos"])

Mapping field

With block extraction, MQL provides arrays of maps:

> users { name }
[
0: { name: "root" }

...

]

You can map these values into a simple list:

> users.map(name)
[
0: "root",

...

]

This makes many queries and assertions easier:

users.map(name).contains( "anya" )

Maps

Maps are key-value structures in which the key is a string and the value can be any type. You can access individual fields using [] or get all keys and values

These are simple examples:

m = {"a": 1, "b": 2}

> m.b
# 2

> m.keys
# ["a", "b"]

> m.values
# [1, 2]

This is a real-life example:

> os.env["SHELL"]
"/usr/bin/zsh"

Map assertions

The available assertions for maps are:

{'a': 1, 'b': 2}.contains( key == 'b' )
{'a': 1, 'b': 2}.all( value > 0 )
{'a': 1, 'b': 2}.one( value != 1 )
{'a': 1, 'b': 2}.none( key == /d-f/ )

Dicts

Dicts are similar to maps but have one key difference: Maps are statically typed ahead of time; they have known value types.

That’s not the case when you process unknown data such as JSON. This presents a challenge, and the solution is dict:

> parse.json("my.json")
parse.json.params: {
1: 1.000000
1.0: 1.000000
_: null
date: "2016-01-28T23:02:24Z"
dict: {
ee: 3.000000
ej: 4.000000
ek: 5.000000
}

...

As you can see, there can be mixed values for all supported base types.

All other operations work as expected:

> parse.json("my.json").params.keys
parse.json.params.keys: [
0: "int-array"
1: "f"
2: "string-array"
3: "hello"


> parse.json("my.json").params.value
parse.json.params.values: [
0: null
1: true
2: 1.000000
3: "hello"

> parse.json("my.json").params["f"][0]
parse.json.params[f][0]: {
ff: 3.000000
}

> parse.json("my.json").
params["f"].
all( _.keys.contains("ff") )
[ok] value: true

recurse helper for dicts

The recurse helper makes it easy to extract data from a dict structure made up of mixed value types.

For example, suppose you need to retrieve all users from this JSON data structure:

{
"users": [{ "name": "bob" }],
"owners": {
"admins": [{ "name": "joy", "isOwner": true }]
}
}

Because of the varying data types, finding users in this structure is difficult with traditional mechanisms. You need to understand the data structure and know where to search.

recurse eliminates that difficulty:

jdata.recurse( name != empty )
[
0: {
name: "bob"
}
1: {
isOwner: true
name: "joy"
}
]

You can then map the user names:

jdata.recurse( name != empty ).map(name)
[
0: "bob"
1: "joy"
]

Nested data

JSON, Terraform, and Kubernetes artifacts can include nested structures that make data a challenge to access. To make these easier to query, MQL supports simple accessors:

tfblock {
attributes.account_id.value
}

Helpers for data type conversions

Helpers let you convert data to the type you need:

> int(1.23)
1

> bool(1)
true

> float(12)
12

> string(1.89)
"1.89"

> regex("w.r.d") == "world 🌎"
/w.r.d/

Error handling

For values that cannot be accessed, MQL provides errors:

> file("/etc/shadow").content
[failed] file.content
error: open /etc/shadow: permission denied

Null chaining

In general, null values are chained across their access:

> sshd.config.params["NONE"].downcase == null
[ok] value: _

Concurrency

MQL supports concurrent execution by default. All code that you write is executed in the order of its necessary I/O input.

For example:

hosts = [
tls("mondoo.com"),
tls("mondoo.io"),
...
]

hosts.all(
ciphers
.none( /cbc/i )
)

This call checks all TLS ciphers on all the hosts that were previously defined. Such calls can take a while to execute if done serially. However, MQL looks for the entry points where data is being processed and executes those in parallel. In the example above, the TLS requests to all hosts will run in parallel and aggregate.

It doesn’t matter if the data is retrieved from an API, file, system command or other call; MQL always executes calls in parallel.

You don't have to configure or think about concurrency or parallel value assignment in MQL; concurrency is automatic on all available streams.

Commenting

MQL supports # commenting, which works best with YAML.

# I am a comment
sshd.config.params

MQL also supports //.

Embedding

It’s easy to embed MQL in your code.

CLI

A quick way to embed MQL is to execute MQL in the CLI and embed the results in other scripts:

> cnquery run local --json \
-c "processes.where(command == /long test/).map(pid)" | ...

Code embedding

You can embed the MQL execution engine as a dependency. This example embeds in Go:

package mqldiscovery

import (
"go.mondoo.com/cnquery"
"go.mondoo.com/cnquery/llx"
"go.mondoo.com/cnquery/motor"
aws_provider "go.mondoo.com/cnquery/motor/providers/aws"
"go.mondoo.com/cnquery/mql"
"go.mondoo.com/cnquery/resources"
resource_pack "go.mondoo.com/cnquery/resources/packs/aws"
)

func New(provider *aws_provider.Provider) (*MqlDiscovery, error) {
m, err := motor.New(provider)
if err != nil {
return nil, err
}
rt := resources.NewRuntime(resource_pack.Registry, m)
return &MqlDiscovery{rt: rt}, nil
}

type MqlDiscovery struct {
rt *resources.Runtime
}

func (md *MqlDiscovery) GetResourceCount(query string) int32 {
mqlExecutor := mql.New(md.rt, cnquery.DefaultFeatures)
value, err := mqlExecutor.Exec(query, map[string]*llx.Primitive{})
if err != nil {
return 0
}

a := 0
d, _ := mapstructure.NewDecoder(&mapstructure.DecoderConfig{
Result: &a,
})
d.Decode(value.Value)
return int32(a)
}

func (md *MqlDiscovery) GetRegionsList() []string {
mqlExecutor := mql.New(md.rt, cnquery.DefaultFeatures)
value, err := mqlExecutor.Exec("aws.regions", map[string]*llx.Primitive{})
if err != nil {
return []string{}
}

a := []string{}
d, _ := mapstructure.NewDecoder(&mapstructure.DecoderConfig{
Result: &a,
})
d.Decode(value.Value)
return a
}

func (md *MqlDiscovery) Close() {
if md.rt != nil && md.rt.Motor != nil {
md.rt.Motor.Close()
}
}

func (md *MqlDiscovery) RunQuery(query string) interface{} {
mqlExecutor := mql.New(md.rt, cnquery.DefaultFeatures)
value, err := mqlExecutor.Exec(query, map[string]*llx.Primitive{})
if err != nil {
return nil
}

var a interface{}
d, _ := mapstructure.NewDecoder(&mapstructure.DecoderConfig{
Result: &a,
})
d.Decode(value.Value)
return a
}
