Build Secure VM Images in Google Cloud with cnspec and HashiCorp Packer

Run security scans during HashiCorp Packer builds using the cnspec Packer plugin by Mondoo. This tutorial covers both unregistered and registered modes.

Prerequisites

Before you begin, be sure you have:

• A Google Cloud account
• The Google Cloud SDK installed and authenticated using Application Default Credentials
• The latest HashiCorp Packer installed

The user or service account must have these roles:

• roles/iam.serviceAccountUser (Service Account User)
• roles/compute.instanceAdmin.v1 (Compute Instance Admin v1)

Configure the Google Cloud project

Machine images live in a Google Cloud project. Run gcloud projects list to see the projects you have access to, or gcloud projects create to create a new one.

Enable the required APIs in the project:

gcloud services enable sourcerepo.googleapis.com
gcloud services enable compute.googleapis.com
gcloud services enable servicemanagement.googleapis.com
gcloud services enable storage-api.googleapis.com

How the cnspec Packer plugin works

The cnspec Packer plugin by Mondoo scans Linux and Windows HashiCorp Packer builds for vulnerabilities and security misconfigurations. It works with any supported Packer builder, including container builders.

Plugin modes

• Unregistered — Runs without a Mondoo Platform account, providing a baseline scan with minimal configuration. The plugin runs the Linux Security by Mondoo policy on Linux builds and the Windows Security by Mondoo policy on Windows builds. Results are printed to stdout during the build.
• Registered — Registers the plugin to your Mondoo Platform space using a service account. You can configure custom policies, run CIS benchmarks, and store every build's results in Mondoo Platform.

Plugin configuration

The cnspec plugin exposes these options:

• score_threshold — An integer score threshold. If the scan produces a score below the threshold, the build fails.
• on_failure = "continue" — Lets the build succeed even when the score is below the threshold.
• sudo — Enables sudo for checks that need elevated privileges (for example, reading sshd_config). Set sudo { active = true }.
• asset_name — Override the asset name in Mondoo Platform. Registered mode only.
• annotations — Custom annotations attached to the build asset. Registered mode only.

Register with Mondoo Platform

To run the cnspec Packer plugin in registered mode, you need a Base64-encoded Mondoo Platform service account.

1. Navigate to the space in which you want to create a service account.

2. In the left navigation, select Settings, then select the Service Accounts tab.

3. Select the purple plus sign to add a new service account.

4. Provide a Name and (optionally) a Description.

5. Under Permissions, select Agent, then select Generate Service Account.

6. Copy the Base64-encoded credentials to your clipboard.

7. In the terminal where you'll run Packer, export the credentials:

   export MONDOO_CONFIG_BASE64=<paste Base64-encoded token>

Run Packer

A Packer template is a configuration file that defines the image you want to build and how to build it. Packer templates use the HashiCorp Configuration Language (HCL).

Ubuntu 24.04 template

Create a directory and switch to it:

mkdir mondoo_packer
cd mondoo_packer

Create gcp-ubuntu2404.pkr.hcl with the following content:

packer {
  required_plugins {
    googlecompute = {
      version = ">= 1.1.0"
      source  = "github.com/hashicorp/googlecompute"
    }
    cnspec = {
      version = ">= 12.0.0"
      source  = "github.com/mondoohq/cnspec"
    }
  }
}

variable "zone" {
  default     = "us-east5-a"
  description = "Google Cloud zone to build the image in"
}

variable "project_id" {
  type        = string
  description = "Google Cloud project ID to build the image in"
}

variable "image_prefix" {
  type        = string
  description = "Prefix to be applied to the image name"
  default     = "cnspec-tested-ubuntu-2404"
}

locals { timestamp = regex_replace(timestamp(), "[- TZ:]", "") }

source "googlecompute" "ubuntu2404" {
  image_name              = "${var.image_prefix}-${local.timestamp}"
  machine_type            = "e2-small"
  source_image_family     = "ubuntu-2404-lts-amd64"
  source_image_project_id = ["ubuntu-os-cloud"]
  ssh_username            = "packer"
  temporary_key_pair_type = "rsa"
  temporary_key_pair_bits = 2048
  zone                    = var.zone
  project_id              = var.project_id
}

build {
  sources = ["source.googlecompute.ubuntu2404"]

  provisioner "shell" {
    inline = [
      "echo Hello From ${source.type} ${source.name}",
    ]
  }

  provisioner "cnspec" {
    score_threshold = 80
    on_failure      = "continue"
    sudo {
      active = true
    }
  }
}

This template builds an Ubuntu 24.04 image in the us-east5-a zone.

The template defines three variables: zone (default us-east5-a), project_id (required), and image_prefix (default cnspec-tested-ubuntu-2404). Override them using any of the standard Packer variable methods.

Initialize Packer

packer init gcp-ubuntu2404.pkr.hcl

Build the image

packer build gcp-ubuntu2404.pkr.hcl

Packer prints output similar to this (truncated for readability):

==> <image-name>: Checking image does not exist...
==> <image-name>: Creating temporary RSA SSH key for instance...
==> <image-name>: Creating instance...
==> <image-name>: Waiting for the instance to become running...
==> <image-name>: Using SSH communicator to connect: 34.162.0.117
==> <image-name>: Waiting for SSH to become available...
==> <image-name>: Running cnspec packer provisioner by Mondoo
==> <image-name>: scan packer build
...
==> <image-name>: Deleting instance...
==> <image-name>: Creating image...
==> <image-name>: Deleting disk...
Build '<image-name>' finished.

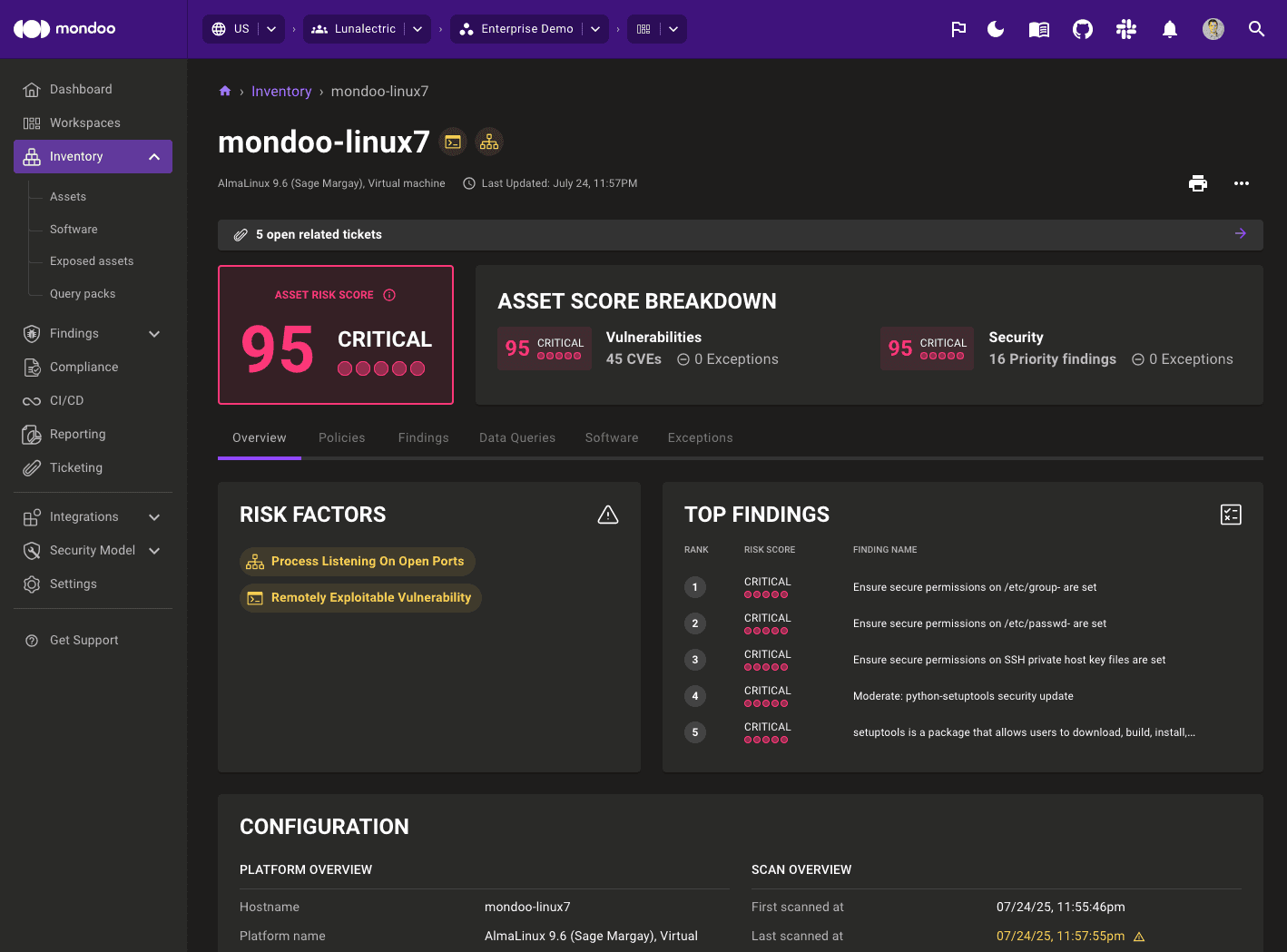

View the scan report in Mondoo Platform (registered mode only)

The cnspec plugin sends scan results to Mondoo Platform. To view a build's report, open the Mondoo Console, navigate to INVENTORY → ASSETS, and select your asset.

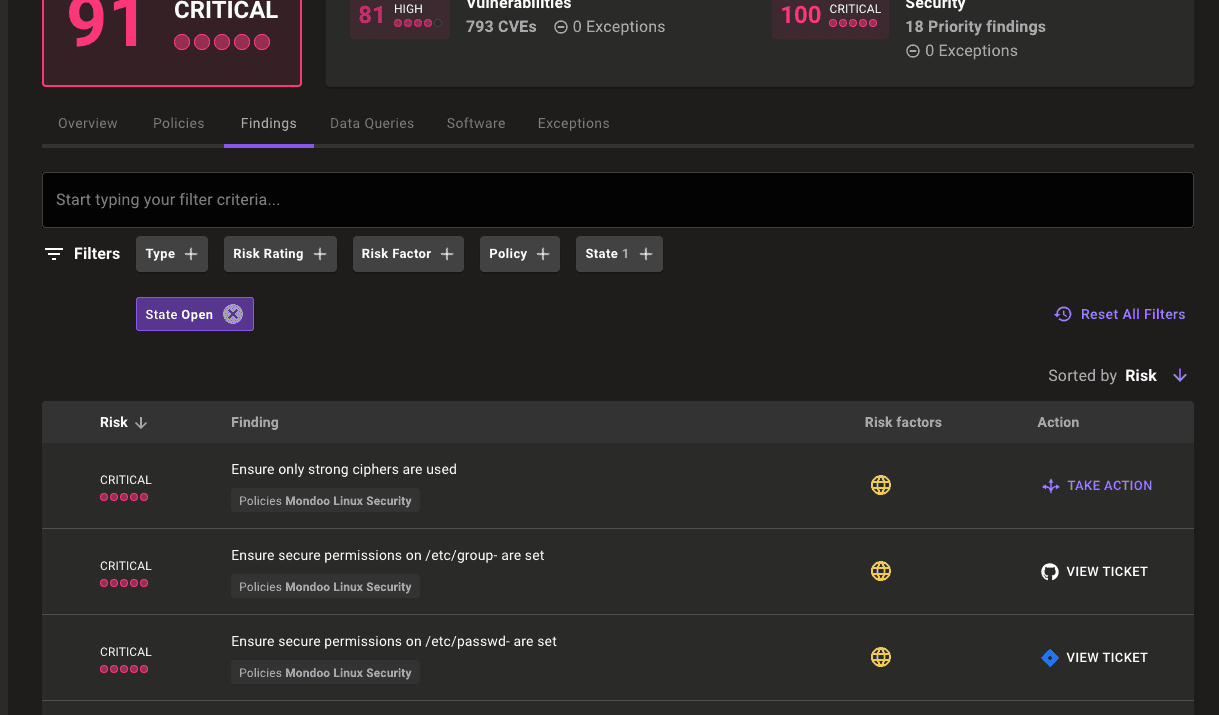

View the findings details

Select the Findings tab.

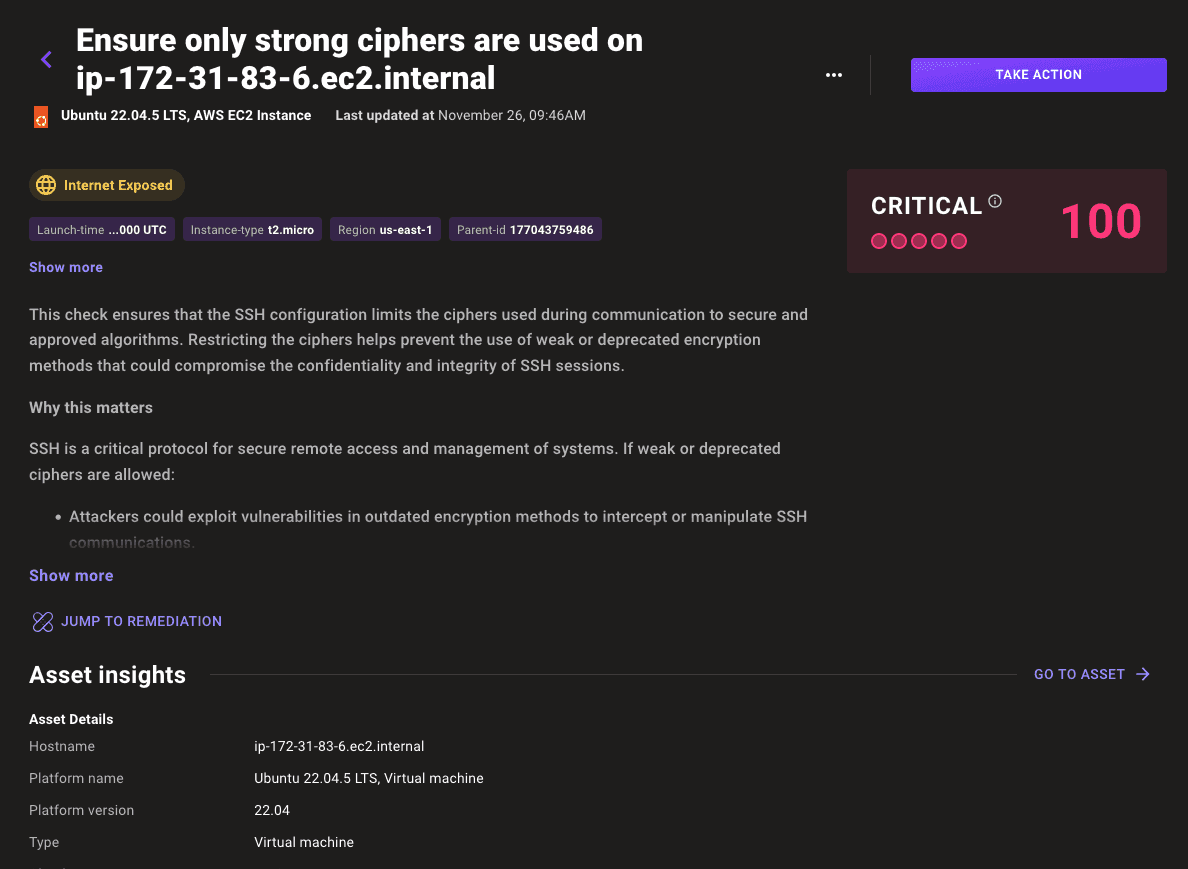

Select any finding to see documentation, audit context, and remediation steps:

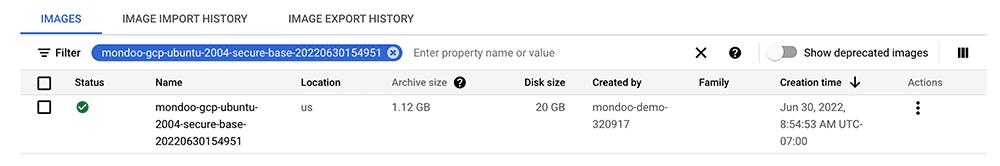

View the image in Google Cloud Console

After the build completes, open the Compute Engine Images page in Google Cloud Console.

Next steps

You built a Google Cloud machine image and scanned it for vulnerabilities and misconfigurations with cnspec.

The cnspec Packer plugin repository contains additional templates for other Linux distributions, Windows, and container builders.
