Run cnspec as a service

This document covers how to run cnspec as a service on hosts in your environment.

Configure cnspec to run as a service

When configured as a service, cnspec continuously assesses hosts by running policies configured in Mondoo Platform. By default, every 60 minutes, cnspec service:

1. Connects to your account in the platform

2. Retrieves and validates the latest policies enabled for it.

3. Scans the host.

4. Reports scan results back to the platform.

Linux

The installation places a systemd unit file at /etc/systemd/system/cnspec.service. However, it does not register or enable the service.

info

Before starting cnspec as a service, you should have already registered the host with your Mondoo Platform account.

Enable and start cnspec as a service

1. Reload systemd daemon and load the cnspec.service unit file

sudo systemctl daemon-reload

2. Enable cnspec to run during startup

sudo systemctl enable cnspec

3. Start cnspec service

sudo systemctl start cnspec

4. Check the status of cnspec

sudo systemctl status cnspec

cnspec service logging

cnspec service writes log events to the system logs. You can use this command to tail cnspec service logs on Linux hosts:

Tail cnspec service logs

sudo journalctl -u cnspec -f

The default log level is info but can be configured as defined in cnspec Configuration options below

Windows

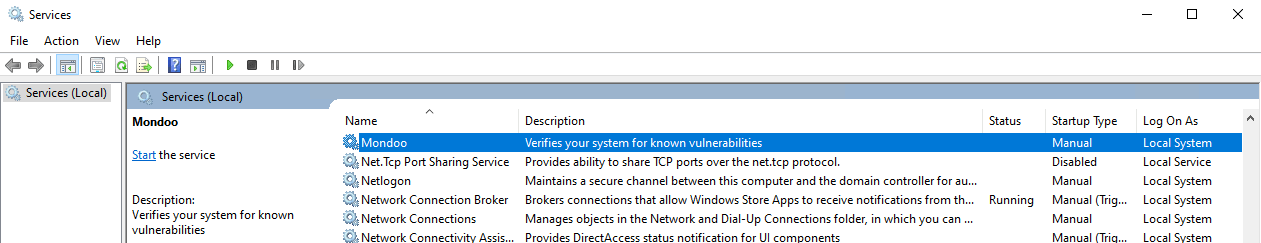

When installed on Windows, the mondoo package automatically registers with the Service Control Manager in Windows, but sets the default Startup Type to Manual and does not start the service.

Running as a service

Launch a PowerShell terminal as an administrator and run these commands:

info

Before starting cnspec as a service, you should have already registered the host with your Mondoo Platform account.

1. Set mondoo service to run automatically at startup

Set-Service -Name mondoo -StartupType Automatic

2. Start mondoo service

Set-Service -Name mondoo -Status Running

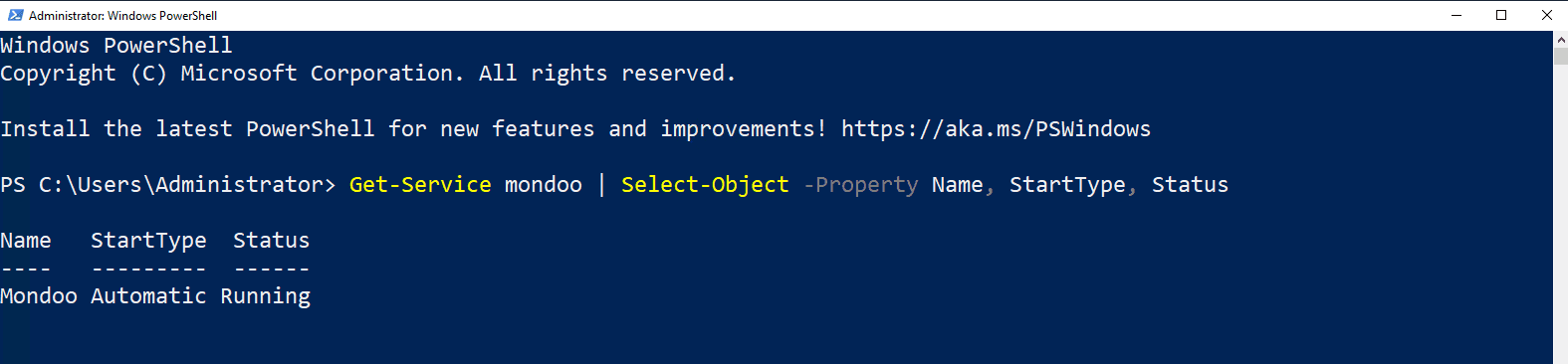

3. Validate mondoo is running as a service

Get-Service mondoo | Select-Object -Property Name, StartType, Status

Mondoo service logging

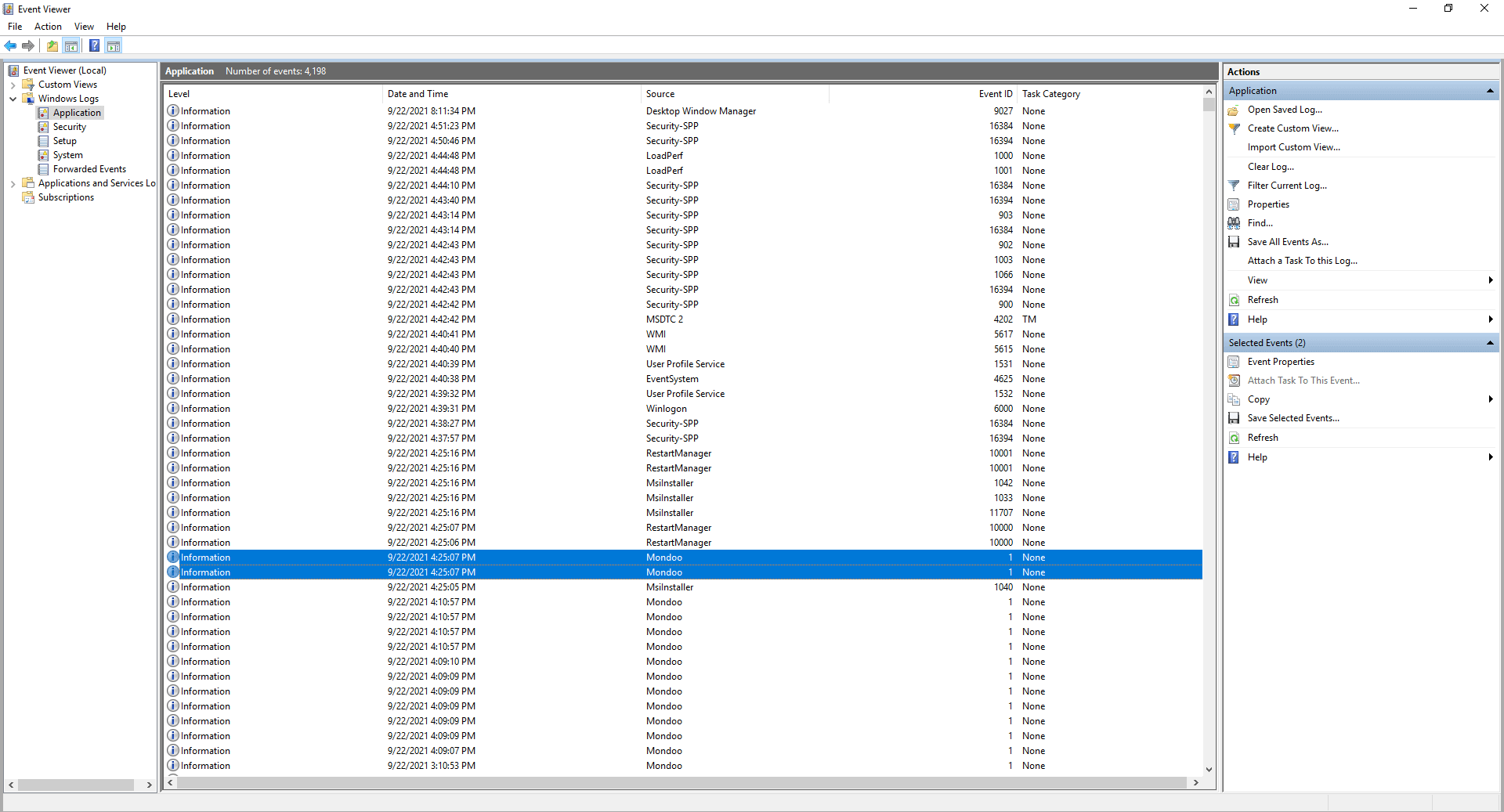

Mondoo service writes logging events to the Windows Event Viewer Application logs. To view logs:

1. Select the Start Menu and launch Event Viewer
2. Expand Windows Logs
3. Select Application to view application logs
4. Use Find... to search for "cnspec"

macOS

If you installed cnspec using the PKG installer, a launchd service is created automatically. If you installed cnspec using Homebrew, you can manually create the service plist file at /Library/LaunchDaemons/com.mondoo.client.plist:

Create the com.mondoo.client.plist file

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>Label</key>
	<string>com.mondoo.client</string>
	<key>ProgramArguments</key>
	<array>
		<string>/path/to/cnspec</string>
		<string>serve</string>
		<string>-t</string>
		<string>60</string>
		<string>--config</string>
		<string>/etc/opt/mondoo/mondoo.yml</string>
	</array>
	<key>RunAtLoad</key>
	<true/>
</dict>
</plist>

You must replace "/path/to/cnspec" with the path to cnspec on your host. You can validate this by opening a terminal and running which cnspec. Also, ensure you specify the correct path to Mondoo Platform config ("/etc/opt/mondoo/mondoo.yml" in the example above), which can be validated by opening a terminal and running cnspec status. Additionally, you can adjust the scan frequency (60 minutes by default).

Load the Launchd Service

sudo launchctl load /Library/LaunchDaemons/com.mondoo.client.plist

To start, stop or check the status of the service, use the launchctl tool:

$ sudo launchctl start com.mondoo.client
$ sudo launchctl list | grep cnspec
-	1	com.mondoo.client

cnspec serve

In addition to leveraging the platform service management system, cnspec includes the cnspec serve command, which you can use on any supported platform (Linux, Windows, macOS) to continuously run assessments of hosts.

info

cnspec serve leverages the default configuration of the host if already registered.

Set a custom scan interval

Use the --timer flag to set a scan interval in minutes. The default is 60. For example, this runs a scan with cnspec serve every 15 minutes:

cnspec serve --timer 15

cnspec configuration options

cnspec configuration is stored on the host at this location:

• Linux - /etc/opt/mondoo/mondoo.yml
• Windows - C:\ProgramData\Mondoo\mondoo.yml

Common cnspec service configuration options:

Name	Description
agent_mrn	Agent Mondoo resource name, identifies the client
api_endpoint	The URL of Mondoo Platform (https://us.api.mondoo.com is the default)
certificate	Client's public certificate
loglevel	Service log level: error, warn, info, debug, trace (default is info)
mrn	Service Account Mondoo resource name, which identifies the service account
private_key	Client's private key used to sign requests sent to Mondoo Platform
space_mrn	Space Mondoo resource name, identifies the space that the client belongs to
annotations	Annotations that display in the Mondoo Console condole.mondoo.com

# service account mrn
mrn: //agents.api.mondoo.app/spaces/spacex/serviceaccounts/1utIs5XUQ8XayfB6yiQNTLOqPlD
# agent mrn
agent_mrn: //agents.api.mondoo.app/spaces/spacex/agents/1utIqsjg3YSAF8hMMIhg8tBsTPP
# space mrn
space_mrn: //captain.api.mondoo.app/spaces/spacex
# api endpoint
api_endpoint: https://us.api.mondoo.com
# pem-encoded certificate
certificate: |
  -----BEGIN CERTIFICATE-----
  ...
  -----END CERTIFICATE-----
# pem-encoded private key
private_key: |
  -----BEGIN PRIVATE KEY-----
  ...
  -----END PRIVATE KEY-----
# log level: error, warn, info, debug, trace
loglevel: info
# tags
annotations:
  - key1: value1
  - key2: value2

cnspec inventory

cnspec inventory configuration defines a list of targets for cnspec to scan. This example contains an ssh-based scan with annotations:

apiVersion: v1
kind: Inventory
metadata:
  name: cnspec-ssh-inventory
  labels:
    environment: production
spec:
  assets:
    # linux with password authentication
    - id: linux-ssh-with-password
      connections:
        - host: 192.168.5.89
          type: ssh
          credentials:
            - type: password
              user: mondoo
              password: mondoo
      annotations:
        key: value

This example scans the local machine and all running containers:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - id: docker-container
      connections:
        - type: local
          discover:
            targets:
              - "container"

This example scans the local machine and all container images:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - id: docker-container
      connections:
        - type: local
          discover:
            targets:
              - "container-images"

This example scans the vSphere environment with embedded credentials:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - name: vsphere
      connections:
        - type: vsphere
          host: 192.168.5.24
          credentials:
            - type: password
              user: mondoo-read@vsphere.local
              password: test
          discover:
            targets:
              - host-machines

This example scans the vSphere environment with extracted credentials and reference:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - name: vsphere
      connections:
        - type: vsphere
          host: 192.168.5.24
          credentials:
            - secret_id: my-secret
          discover:
            targets:
              - host-machines
  credentials:
    my-secret:
      type: password
      user: mondoo-read@vsphere.local
      password: test

This example scans the vSphere environment with credentials from HashiCorp Vault:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - name:
      connections:
        - type: vsphere
          host: 192.168.5.24
          insecure: true
          credentials:
            - secret_id: vcenter/mondoo-read
          discover:
            targets:
              - auto
      annotations:
        Owner: patrick@mondoo.com
  vault:
    name: cnspec-hashivault
    type: hashicorp-vault
    options:
      url: http://127.0.0.1:8200
      token: XXXXXXXX

Example to scan a Microsoft 365 account:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - connections:
        - type: ms365
          credentials:
            - type: pkcs12
              private_key_path: "/Users/atomic111/Projects/presales/m365-scanning/certificate.combo.pem"
          options:
            client-id: c4b89770-5ed2-4367-b4f6-ff05ffcb3406
            organization: ""
            sharepoint-url: ""
            tenant-id: d9abc6fc-fd88-4480-a931-2f7939adbac2
          discover:
            targets:
              - auto

Example to scan an Azure tenant including all subscriptions:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - connections:
        - type: azure
          credentials:
            - type: pkcs12
              private_key_path: "</Users/user/tmpjddt4b_y5.pem>"
          options:
            client-id: 9f51cb-66c3-4gg9-b525-fbd717384d96
            lun: "0"
            tenant-id: f115cf8c-a2d4-51ef-1234-56f7ed7e18ec
          discover:
            targets:
              - auto

Example to scan a Google Workspace account:

apiVersion: v1
kind: Inventory
metadata:
  name: mondoo-inventory
  labels:
    environment: production
spec:
  assets:
    - connections:
        - type: google-workspace
          credentials:
            - type: json
              secret: <base64 encoded secret>
          options:
            customer-id: D34dr1r
            impersonated-user-email: user@lunalectric.com

To execute cnspec with the inventory file, run this command:

cnquery scan --inventory-file ./inventory.yml

cnspec inventory template

cnspec inventory files are useful for a CI/CD pipeline. Inventory templates are useful for scanning different assets for different environments. They allow you to reuse the same template with a custom variable. This example uses the getenv function to include an environment variable (the asset name):

spec:
  assets:
    - name: {{ getenv "ASSET_NAME" }}
      connections:
        - type: local
          discover:
            targets:
              - auto

You can use this example inventory template by providing the ASSET_NAME and variable with the cnspec scan command and specifying the template:

ASSET_NAME="my_asset" cnspec scan --inventory-template template.yaml

---
